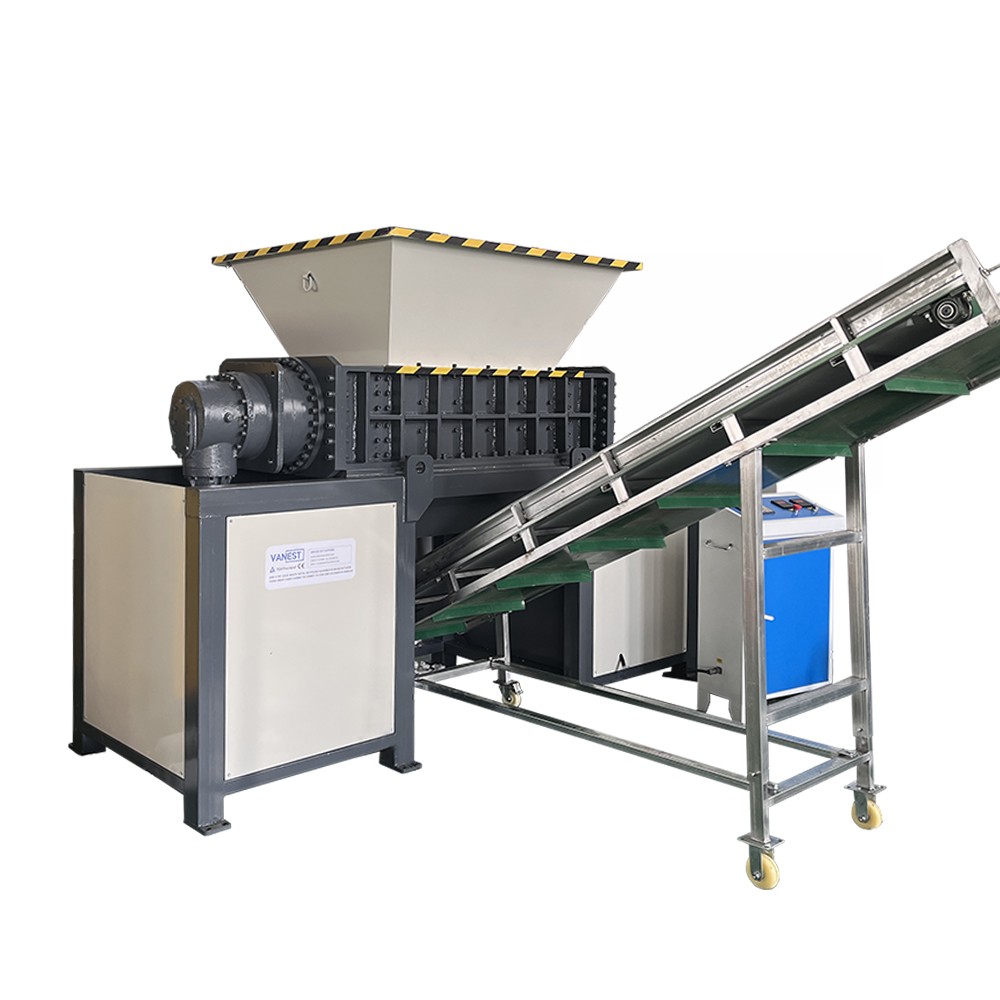

V-DX1000 Tire Shredders

V-DX1000 Tire Shredders | VANEST

V-DX1000 Tire Shredders Machine deal with a wide variety of waste materials including scrap metal, car body, tire, auto parts, aluminium, cables, plastic, wood, paper and computer hard drives. VANEST supplies Industrial metal shredders for every type of application, whether it’s in factory, laboratory or outside in scrap yard.


Working principle of V-DX1000 Tire Shredders:
The double-shaft shredder is sheared by the blades on the two shafts to meet the requirements of shredding materials.
The size after shredding is related to the thickness of the shredding blade and the number of teeth.
The thinner the blade, the smaller the size of the shredded material, the more the number of cutter teeth, the shorter the length of the shredded material.


Features:
● The blade holder and blade on the rotor can be disassembled for easy cleaning and maintenance.
● Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use.
● The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
● Adopt PLC program control system, can automatically reverse, make the machine run stably.
● The box body is welded and tempered after welding to eliminate the welding stress.
● The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same.
● The moving tool holder is embedded in the tool shaft with high strength screws, and can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
● Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.

Applications:

V-DX1000 Tire Shredders Machine is especially for shredding metal,fabric,waste tires,various solid materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.


The shredder can process materials, and different models are used for different materials. Before ordering, please contact our sellers and provide raw materials.


Model V-DX800 (PLC) V-DX1000 (PLC)
 V-DX1200 (PLC) V-DX1400 (PLC) V-DX1600 (PLC) V-DX1800 (PLC)
Motor 22KW (2 units)
 22KW (2 units) 45KW (2 units) 45KW (2 units) 75KW (2 units) 75KW (2 units)
Voltage customized customized customized customized customized customized
Input rotary speed 10rpm/min 10rpm/min 10rpm/min 10rpm/min 10rpm/min 10rpm/min
Feeding hole size 1100*940mm 1200*1035mm 1500*1300mm 1800*1500mm 2000*1450mm 2190*1800mm
Blades quantity 26 pieces 32 pieces 24 pieces 28 pieces 20 pieces 30 pieces
Machine size (L*W*H) 2000*1010*2455mm 2900*1135*2075mm 3500*1400*2200mm 3700*1600*2200mm 4250*1600*2350mm 4800*2700*5100mm
Machine weight 2.5 T 5 T 8 T 10 T 12 T 32 T

Send Inquiry

Contact VANEST using the form below or give us a call +8618792968735


Product search

V-EBK800 Industrial Metal Shredder

V-EBK800 Industrial Metal Shredder

V-DBK800 Tire Shredders

V-DBK800 Tire Shredders

V-EBK800 Industrial Scrap Metal Shredder

V-EBK800 Industrial Scrap Metal Shredder

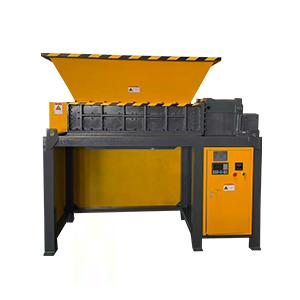

V-EBK1200 Industrial Metal Shredder Machine
