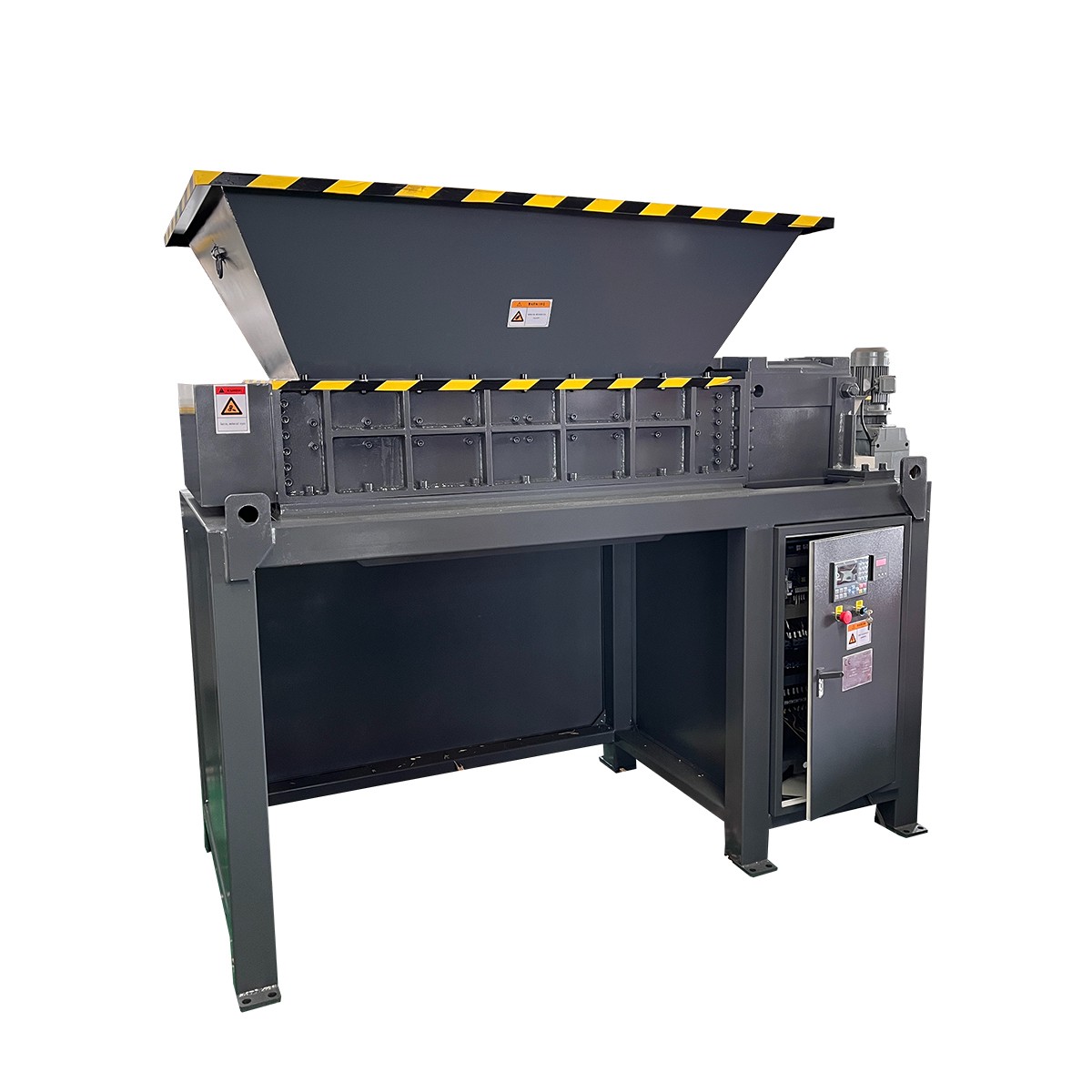

V-EBK1200 Industrial Metal Shredder

V-EBK1200 Industrial Scrap Metal Shredder | VANEST


V-EBK1200 Industrial Scrap Metal Shredder is a small metal shredder that delivers powerful capabilities. With its twin shaft design, this unit can perform in applications like no other by providing excellent feeding characteristics on a variety of solids. These versatile shredders can handle solid material such as E-waste, metal, wood, plastic, packaging barrel, pallets, etc.


Working principle of V-EBK1200 Industrial Metal Shredder:
The double-shaft shredder is sheared by the blades on the two shafts to meet the requirements of shredding materials.
The size after shredding is related to the thickness of the shredding blade and the number of teeth.
The thinner the blade, the smaller the size of the shredded material, the more the number of cutter teeth, the shorter the length of the shredded material.


Features:
● The blade holder and blade on the rotor can be disassembled for easy cleaning and maintenance.
● Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use.
● The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque.
● Adopt PLC program control system, can automatically reverse, make the machine run stably.
● The box body is welded and tempered after welding to eliminate the welding stress.
● The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same.
● The moving tool holder is embedded in the tool shaft with high strength screws, and can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
● Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient secondary processing.

Applications:

V-EBK1200 Industrial Metal Shredder Machine is especially for shredding metal,fabric, various solid materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.


The shredder can process materials, and different models are used for different materials. Before ordering, please contact our sellers and provide raw materials.


Мodel V-EB180 V-EB300 V-EBK400 V-EBK500 V-EBK600 V-EBK800 V-EBK1000 V-EBK1200
Motor 1.5KW
 3KW 4KW 11KW 11KW 22KW 22KW 22KW
Voltage 220v 50hz 1phase
 3phase/1Phase -Plug 380v 60hz 3phase 380v 60hz 3phase 380v 50hz 3phase 400v 50hz 3phase 380v 50hz 3phase 380v 50hz 3phase
Input rotary speed 25rpm/min
 16rpm/min 12rpm/min 21rpm/min 16rpm/min 16rpm/min 16rpm/min 16rpm/min
Feeding hole size 180*190mm
 500*500*300mm 600*500*300mm 700*700*350mm 1000*800mm 1200*800mm 1400*800mm 1600*1000mm
Blades quantity 21 pieces
 24 pieces 26 pieces 24 pieces 29 pieces 39 pieces 49 pieces 59 pieces
Machine size (L*W*H) 590*350*722mm
 1081*570*1329mm 1160*600*1450mm 1350*700*1600mm 1500*870*1855mm 1700*870*1855mm 1900*920*1950mm 2200*800*1725mm
Machine weight 120KG
 400KG 500KG 800KG 1400KG 1820KG 2200KG 3000KG
