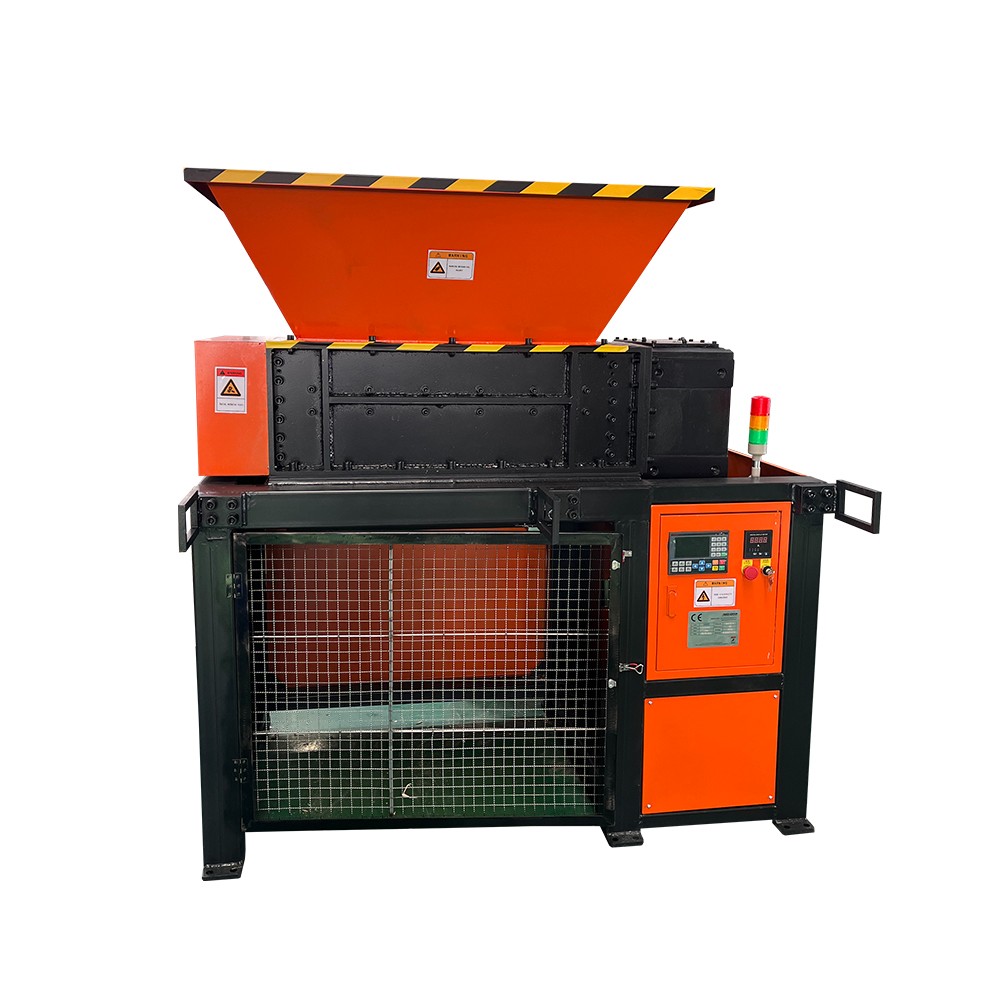

V-EBK800 Industrial Scrap Metal Shredder

On-site installation by professional technicians.
Installation appointments available.

V-EBK800 Industrial Dual-Shaft Shredder

Compact Design. Powerful Shredding. Versatile Applications.
The VANEST V-EBK800 is a compact, heavy-duty dual-shaft shredder designed to reduce the size of a wide range of solid materials. Its dual-shaft cutting system delivers high torque and reliable performance when processing materials such as scrap metal, electronic waste, wood, plastics, packaging drums, pallets, and more. An efficient solution for reducing waste volume and preparing materials for transport, recycling, or further processing.

How Does the V-EBK800 Work?
The V-EBK800 uses two rotating shafts equipped with cutting blades to tear materials into smaller pieces. The output size depends mainly on blade thickness, tooth configuration, and material properties. Thinner blades can produce smaller fragments, while a higher number of cutting teeth can result in shorter pieces.

Key Features
● Designed for Wood Pallets: Ideal for suitable wood pallet recycling applications.
● Four Cutting Edges: Each moving blade has four cutting edges and can be rotated 90° to use another edge when worn.
● High-Torque Geared Drive: Designed for smooth, stable shredding operation.
● PLC Control: Automatic reversing helps address certain overload conditions.
● Maintenance-Friendly Design: Removable blades and precision-machined mounting positions support convenient maintenance.

Applications
The V-EBK800 can process a variety of solid waste materials, depending on their properties and the machine configuration. Typical applications include:
● Metal: Suitable scrap metal and metal components.
● Electronic Waste: Selected electronic equipment and components.
● Plastics: Plastic waste, films, pipes, and other plastic products.
● Wood: Wood offcuts and pallets.
● Textiles and Fibers: Textile scraps and suitable fibrous materials.
● Paper and Cardboard: Paper waste and packaging materials.
● Other Solid Materials: Packaging drums, containers, and compatible industrial waste.
Actual processing capability depends on the material type, dimensions, hardness, and blade configuration.

Find the Right Shredder for Your Material
Different materials may require different blade configurations and machine specifications. Contact VANEST before ordering and tell us what materials you need to shred. Our team will help you determine whether the V-EBK800 is suitable for your application and recommend an appropriate configuration.

Мodel	V-EB180	V-EB300	V-EBK400	V-EBK500	V-EBK600	V-EBK800	V-EBK1000	V-EBK1200
Motor	1.5KW	3KW	4KW	7.5KW	11KW	15KW	22KW	22KW
Voltage	220v 50hz 1phase	3phase/1Phase - Plug	3phase/1Phase - Plug	380v 50hz 3phase	380v 50hz 3phase	400v 50hz 3phase	380v 50hz 3phase	380v 50hz 3phase
Input rotary speed	25rpm/min	16rpm/min	12rpm/min	21rpm/min	16rpm/min	16rpm/min	16rpm/min	16rpm/min
Feeding hole size	180*190mm	500500300mm	600500300mm	700700350mm	1000*800mm	1200*800mm	1400*800mm	1600*1000mm
Blades quantity	21 pieces	24 pieces	26 pieces	24 pieces	29 pieces	39 pieces	49 pieces	59 pieces
Machine size (LWH)	590350722mm	10815701329mm	11606001450mm	13507001600mm	15008701855mm	17008701855mm	19009201950mm	218010601925mm
Machine weight	120KG	400KG	500KG	800KG	1400KG	1820KG	2200KG	3000KG
